Doubly-Modular Sculpture

galleryimage2

Recipe

Start by 3D-printing a cube with a stair-step motif subtracted from it:

StairStepOctant

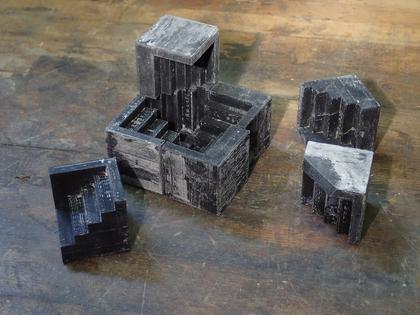

Eight of those cubes (“octants”) assemble to form a cube with a cavity on the inside:

OLYMPUS DIGITAL CAMERA

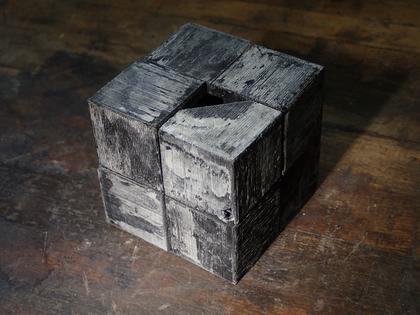

One octant is missing a corner, which gives access to the cavity:

OLYMPUS DIGITAL CAMERA

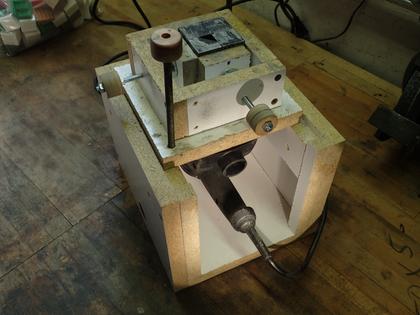

Put randomly-oriented octants, coated with a release agent (vegetable oil), into your form jig with integrated vibrator (made from a cheap random orbital sander):

OLYMPUS DIGITAL CAMERA

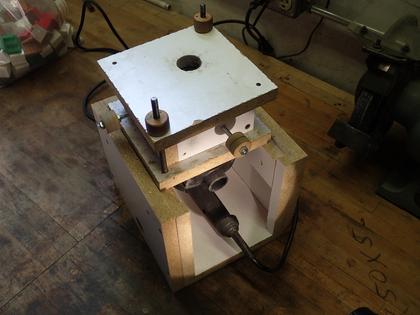

Fill the form with concrete, vibrating out bubbles:

OLYMPUS DIGITAL CAMERA

Wait for the concrete to set, then remove the octants. Grind the sprue off the cast module:

OLYMPUS DIGITAL CAMERA

Make lots of cast modules, changing the orientations of the octants each time. The modules fit together corner-to-corner.* Stack them to make totem sculptures:

ModularSculptureProcess6

* Not entirely true. There are actually two sets of octants that are mirror-images of each other. Right-handed octants fit together with left-handed ones.
